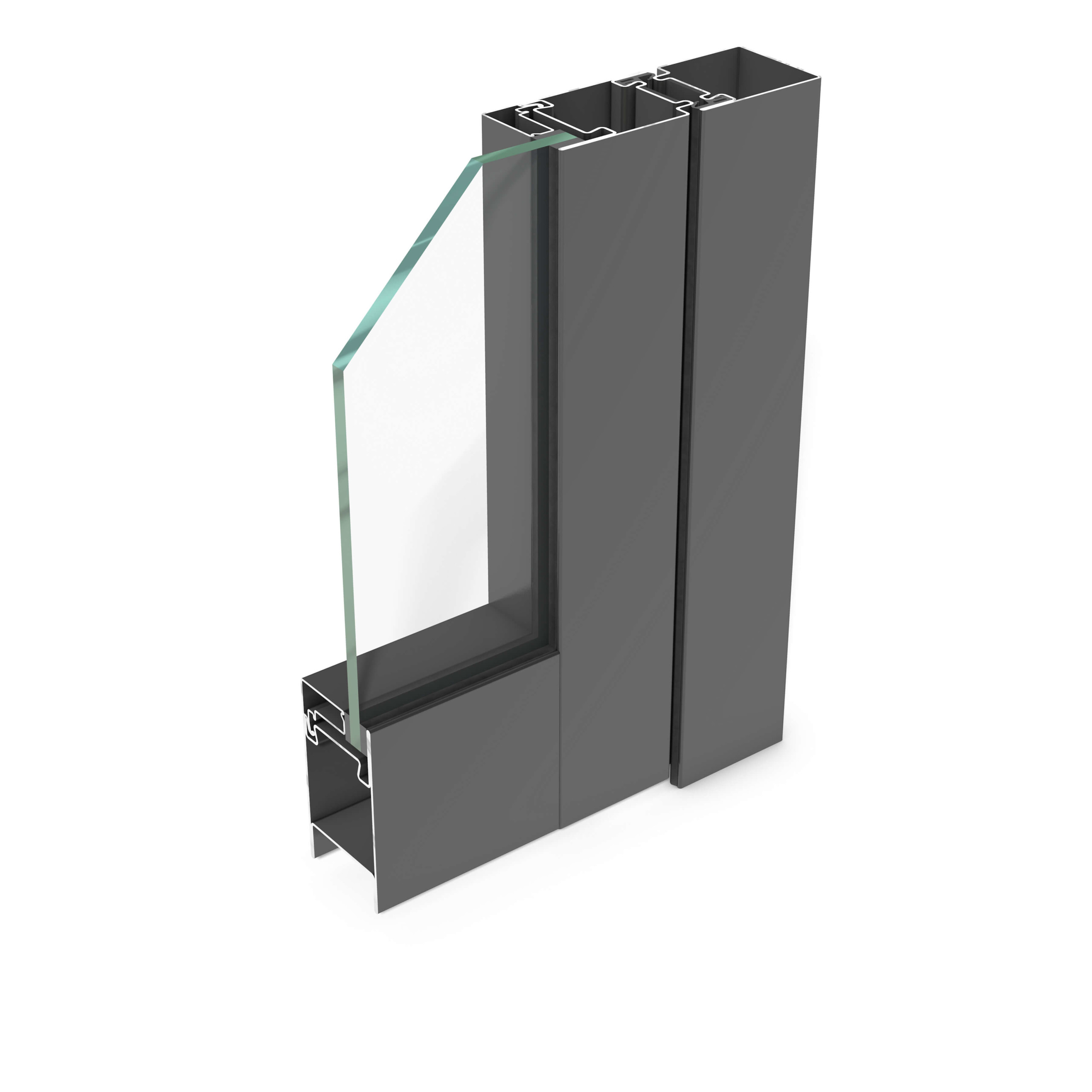

Non-insulated steel door profile system and steel & glass partition wall system for fire protection doors and partition walls of steel in compliance with classifications E60/EW60. This well-thought-out modular system features spot-on protective functions and a uniform appearance across all elements of a project. This is accomplished by equipping the basic profile of the rp hermetic 55D door series as required for compliance with different fire and smoke protection standards.
Drag to rotate 360°, zoom with the mouse wheel, right mouse button drag moves the view
Planning advantages
- Non-insulated steel profile system for fire protection doors and partition walls
- Made of steel
- Uniform overall appearance ensured by using series profiles also for fire and smoke protection doors
- Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)
- Compared to other materials, steel offers the advantage of a planar, elegant mitre due to seamless transitions at the profile joints
- Compatible with other RP Technik window, door and curtain wall systems
- Continuous performance test : up to 200.000 cycles
- Continuous performance test: mechanical stress : up to C5
- Fire protection E (partition walls) : E60
- Fire protection EW (partition walls) : EW60
- Fire protection E (doors) : E60
- Fire protection EW (doors) : EW60
- Ability to release : fulfilled
- Better cost-effectiveness due to great ease of processing, e.g. thanks to clip-on glazing beads
- Modular system for fire and smoke protection – one profile for various fire resistance classes
- Precise and quick processing through the use of system-optimised tools and auxiliary means
- Cross-series accessories
- Better weldability and effective anti-corrosion protection due to continuously hot-dip coated zinc-magnesium surface
