rp fineline 70W
rp fineline 70W

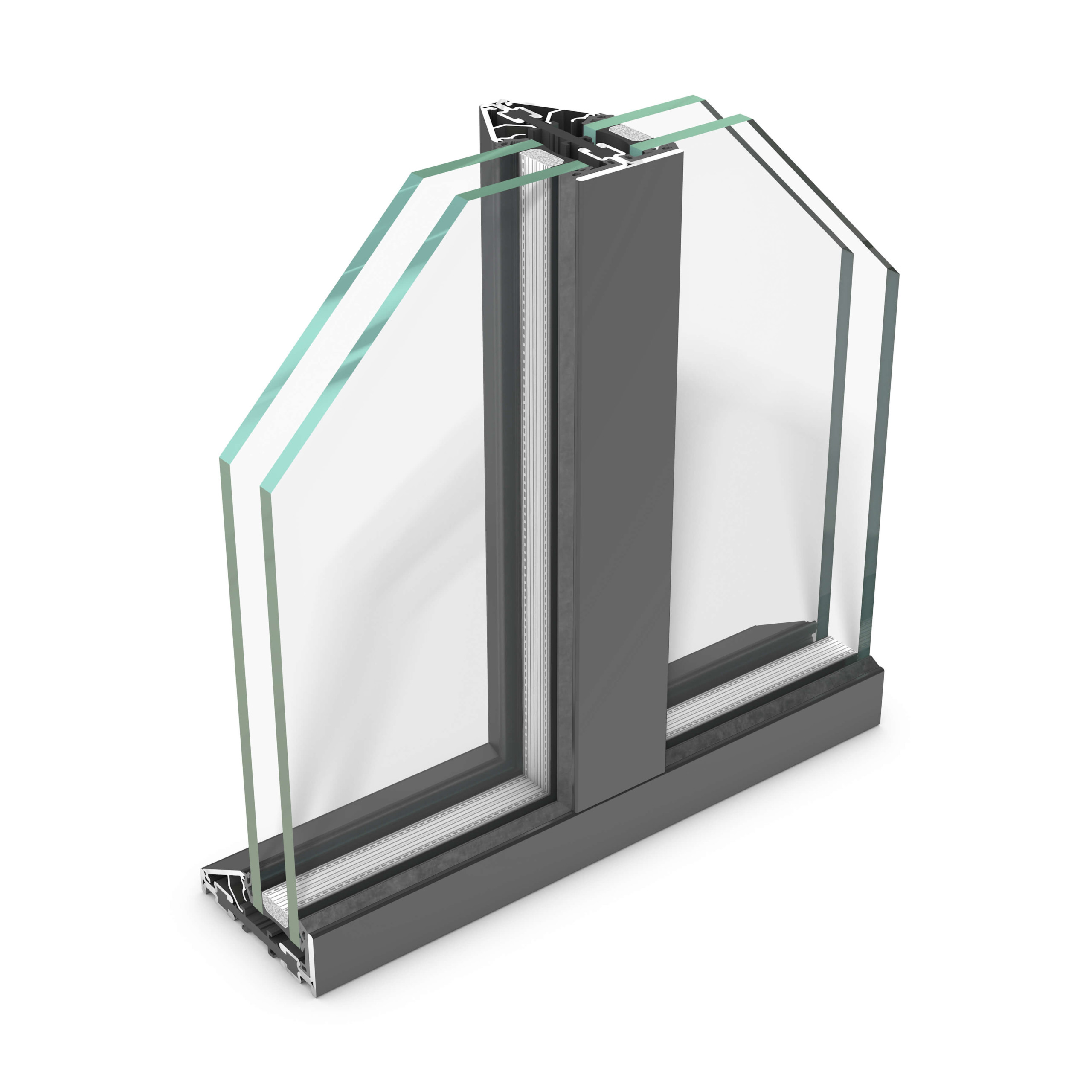

Thermally insulated design system for steel windows and partition walls with extremely slim face widths for ambitious new building projects and renovations subject to monument preservation requirements.
Drag to rotate 360°, zoom with the mouse wheel, right mouse button drag moves the view
Planning advantages
- Extremely slim face widths of only 45 mm for windows and doors (leaf-frame combination)
- Various window types and opening styles
- turn windows (opening inwards and outwards)
- turn tilt window (opening inwards)
- top hung and bottom hung windows (opening outwards)
- fixed glazing
- double casement windows
- 5 different glazing bead contours, identical for windows and doors
- Stainless steel barrel hinges of only 15 mm in diameter; can optionally be coated in every RAL colour
- Homogeneous outer appearance due to concealed drainage
- burglary resistance RC2 for turn/tilt windows (single-leaf and double-leaf) and fixed glazings
- 70 mm profile depth
- Resistance under wind load : ≤C5 / B5
- Air permeability : ≤4
- Watertightness : ≤E900
- Impact strength : 1
- Burglar resistance : RC2 (turn/tilt, fixed glazing)
- Thermal transmittance : Uf≥ 1.5 W/m²K
- Sound insulation : ≤ 50 dB
- Continuous performance test : 2
- Mechanical performance : Requirements of Class CW / TC 2 / A fulfilled
- Mechanical strength : 4
- Clip-on glazing beads for tool-free installation
- Insertable gaskets
- Dry and wet glazing is possible for frames and leaves
- Moulded parts for double casement variants and gaskets
Workshop-practice, episode 1: Installation of the tilt-turn fitting in the sash of rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 2: Installation of the tilt-turn fitting in the frame of rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 3: Installation of the wing of the rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 4: Preparing profiles for welding
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 5: Assembling the frame
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 6: Grinding the frame
By loading the video, you agree to YouTube's privacy policy.
Learn more
