rp fineline
Featuring extremely slim face widths, rp fineline paves the way for forward-looking design solutions for windows, doors and partition walls made of steel. This profile system sets standards for both architecturally ambitious new building projects and renovations subject to monument preservation requirements. The focus of rp fineline is on combining designing possibilities with good processability and cost effectiveness. For example, rp fineline 70 glazing bead designs can be executed with identical contours for both windows and doors, thus giving the elements a uniform appearance in the entire building project. On top of that, the thermally insulated system is the only narrow steel system worldwide that permits the tool-free installation of glazing beads throughout – and thus makes processing more economical.
Extremely slim face widths
Extremely slim face widths for architecturally ambitious projects.
Renovation and revitalisation
Ideal for renovation and revitalisation projects subject to stringent monument preservation requirements.
Workshop-Practice
Experience the processing advantages of rp fineline in the workshop! Because the diverse design options can always be realized with efficient processing, e.g. with clipped glazing beads or plugged seals. In this way, rp fineline also sets standards in processing. Discover our “workshop practice” videos!
Click here to watch the videos!Click here to watch the videos! >>
Handles
Design is a question of attitude, of first impressions and long-term relationships. Following this idea, the design handle lines by RP Technik convince with a pure appearance and ergonomic handling. As an interface between windows and doors made of steel and the people who grasp them.
More >>
- Delicate steel design system for windows, doors, partition walls
- Slim face widths from 45 mm with the thermally insulated rp fineline 70 system and from 36 mm with the non-insulated rp fineline 60 system
- The advantage of steel: unlike other materials, steel is suited to achieve an elegant, planar mitre
- 5 different glazing bead contours, identical for windows and doors, for a harmonious appearance
- 3 different design variants for integrating the lock case into the rp fineline 70D door
- Stainless steel barrel hinges with a diameter of only 15 mm, optionally coated in every RAL color
- Homogeneous outer appearance due to concealed drainage
- Vast variety of overlying or concealed fitting options – from nostalgic to modern
- Large dimensions are possible due to a patented composite technology for thermally insulated profiles
- Wide range of window types and opening styles: turn (inward and outward), turn and tilt (inward), tilt (inward), top hung (outward) and bottom hung (outward), fixed glazing, double casement windows
- 3 optional threshold solutions for rp fineline 70D doors: “normal threshold”, “zero threshold” and “old building threshold”
- 70 mm profile depth for the heat insulating rp fineline 70 system
- 60 mm profile depth for the non-insulated rp fineline 60W system (windows and partition walls) and the rp fineline 60S system (sliding system)
- Economical processing: clip-on glazing beads for tool-free installation; insertable gaskets; dry and wet glazing is possible for frames and leaves; moulded parts for double casement variants and gaskets
- Wind load (EN 12210): ≤C5 / B5
- Air permeability (EN12207): ≤4
- Watertightness (EN 12208): ≤E900
- Impact resistance (EN 13049): 1
- Thermal transmittance (EN ISO 10077-1): Uf ≥ 1.5 W/m²K
- Sound insulation (EN ISO 10140): ≤ 44 dB
- Mechanical performance: meets requirements of Class CW / TC 2 / A
Rue de Lancry, France
In Rue de Lancry, in the heart of the 10th arrondissement of Paris, there is a charming building …
Clemens-August-high school, Cloppenburg
The Clemens-August-high school in Cloppenburg is an outstanding example of the integration of …
Domaine Faiveley, France
The rp fineline 70 system was used in 2018 in the wine factory “Domaine Faiveley”, in one of the …
Rosa Bonheur, Paris
Imagine sitting in a restaurant on a ship on the Seine in Paris, looking out through the built-in …
Swimming pool, Pantin/FR
Built in 1937, the swimming pool is one of the oldest in Île-de-France and is now a listed …
Orangery, Greiz
The orangery, described by Haas Architects as “an approximation of the building’s clear, …
H+S-precision films, Vohenstrauß
Filigree rp fineline window elements as well as fire doors and partition walls of the rp hermetic …
Wiesenburg, Berlin
The Wiesenburg in Berlin combines creativity with social responsibility. Ateliers, studios, …
Old liqueur factory,Horn
In 1934, this large, four-storey brick Gothic-style factory was built at the former headquarters of …
Elementary school, Frankfurt (Oder)
School? Boring? Not with RP Technik! At the listed school building of the century before last a …
Wintergarden, France
This rp fineline 60 winter garden was the first in a long line of winter gardens that reintroduced …
La Rue Raspail, France
After removing the former bay windows and creating a new support structure for the new rp fineline …
Orangerie Tuin de Lage Oosterbeek /NL
This beautiful orangery invites you to relax. Here you can enjoy art just as much as a piece of …
Villa Waldhaus, Berlin
Crystal clear, unobstructed and open viewing angles thanks to the particularly narrow and filigree …
Herzogin Garten Dresden
The Orangerie building, which was almost completely destroyed in the Second World War, was rebuilt …
Energiefabrik Knappenrode, Hoyerswerda
Even from a distance, you can see the red brick of the 100-year-old briquette factory in …
Eiffel Building, Maastricht/NL
The former industrial complex is a national, listed building and today a place where people live …
Products
rp fineline 70W
Extremely slim steel window and partition wall design system
rp fineline 70D
Extremely slim steel door system (thermally insulated)
rp fineline 60W
Extremely slim steel window and partition wall design system (non-insulated)

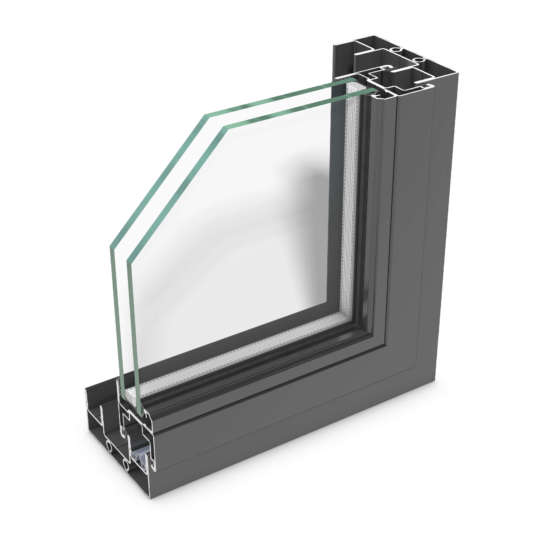

rp fineline 50S
